PIXBAR® SMD IP G2 IP65 SMD LED Bar

Item No.: CLPBSMDIPG2
Series: PIXBAR® Series
Versions:
Note: The technical specifications are preliminary.
Simple and efficient interconection of up to 3 units with the optional STACK-KIT
Adjustable feet for truss-bracing positioning
Optional VERTI-MOUNT for standing or hanging application
Easy slide-in filter mechanism with locking mechanism
Fanless cooling design
High brightness and accurate colour mixing
SPIN16® included


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Note: The technical specifications are preliminary.
Simple and efficient interconection of up to 3 units with the optional STACK-KIT
Adjustable feet for truss-bracing positioning
Optional VERTI-MOUNT for standing or hanging application
Easy slide-in filter mechanism with locking mechanism
Fanless cooling design
High brightness and accurate colour mixing
SPIN16® included
Description

Another remarkable addition to PIXBAR® Generation 2 lineup is the cutting-edge SMD LED version. With its sophisticated functions and robust design, it is the ideal lighting option for any event, whether indoors or outdoors. Like the other PIXBAR® G2 models it's equipped with an IP65 certification, and well-thought-out accessories to unlock the whole potential.

Whether hanging or standing, the optional connection system allows for a variety of creative designs and placement options creating unique lighting effects and set designs. Up to three units can be connected vertically with the optional VERTI MOUNT and STACK KIT for a seamless and synchronized lighting effect. With the M20 adapter the new PIXBAR®-Series can be mounted on M20 threaded base plates. Truss mounting is also made easier thanks to the adjustable feet. All filters can be inserted quickly and easily using the slide-in mechanism of the filter rail.

Additionally, the IP65 LED bars operate quietly thanks to the fanless cooling system, while still ensuring a strong light output. SPIN16® adaptors are also included with each device. So, what are you waiting for? Upgrade your lighting game with Generation 2 of the PIXBAR®-Series.

Specifications
DMX512
Environment-friendly
Protection class IP65
LED technology
Master & slave
RGB additive colour system plus white LEDs
Standalone mode
Strobe
Single pixel control

DMX512

Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Environment-friendly

The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Protection class IP65

The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

LED technology

LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave

Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

RGB additive colour system plus white LEDs

Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Standalone mode

In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Strobe

Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Single pixel control

This device has an individual pixel control function. Since the colour and brightness of each LED pixel can be individually controlled (“Single Pixel Control”), the device can be used to generate animated graphic patterns and pixel mapping effects.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

This product is ETL certified.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Photometric values
Illuminant type
LED RGBW
Luminous flux
8,051 lm
Exchangable lens
No
Exchangable optics
No
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve
Colours
Colour mix functions
RGB
LED colours
Red, Green, Blue, White
Colour control
Direct (single control), CTC with tint
Correlated colour temperature (CCT)
2,100 - 8,000 K
Halogen simulation redshift/DTW
Yes
Calibration
Factory calibration, RAW, User defined calibration
Effects
Strobe
0 - 20 Hz
Iris
No
Animation
No
Framing blades
No
Control
Controller protocols
DMX512, RDM, W-DMX™ (Receiver)
Number of DMX control modes
15
Additional DMX features
DMX delay, System settings
RDM features
DMX adress, DMX mode
Stand alone operating modes
Autorun, Master/slave, Static, Endless loop
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
180 W
Min. Cos Phi power factor (230 V)
0.97
Rated current
0.77 A
Inrush current
44 A
Mains connector
Mains plug device male IP65
Power out
Mains plug device female IP65
Housing
Chassis material
Die-cast aluminium
Coating
Powder coated
Colour
Black
Cooling
Cooling system
Convection cooling
Environmental
Protection class
IP65
Risk group
2
Noise level in operation
0 dB
Ambient temperature
-10 - 45 °C
Maximum air humidity (non-condensing)
100 %
Dimensions & weight
Width
1,018
Height
206
Depth
162
Weight
12.5
Downloads & links
Name
Category
Type
File size
User´s Manual Manual pdf 9 MB
Technical Drawing Data Sheet dxf 13 MB
DMX Control Table (03-2024) Data Sheet pdf 181 KB
Technical Drawing (07-2023) Data Sheet pdf 504 KB
Technical Drawing 3D Data Sheet zip 7 MB
Photometric measurements Data Sheet pdf 734 KB
Technical drawing (03-2024) Data Sheet pdf 827 KB
Data sheet (11-2023) Data Sheet pdf 827 KB
Technical data sheet (12-2023) Data Sheet pdf 827 KB
Fixture Library DASLIGHT (09-2023) Software zip 454 KB
Fixture Library GrandMA2 (02-2024) Software zip 77 KB
Fixture Library GrandMA2 Software zip 77 KB
GDTF File (06-2024) Software zip 403 KB
Light distribution curves Software zip 98 KB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Product images Image files zip -
User´s Manual

Category: Manual

Type: pdf

File size: 9 MB

Technical Drawing

Category: Data Sheet

Type: dxf

File size: 13 MB

DMX Control Table (03-2024)

Category: Data Sheet

Type: pdf

File size: 181 KB

Technical Drawing (07-2023)

Category: Data Sheet

Type: pdf

File size: 504 KB

Technical Drawing 3D

Category: Data Sheet

Type: zip

File size: 7 MB

Photometric measurements

Category: Data Sheet

Type: pdf

File size: 734 KB

Technical drawing (03-2024)

Category: Data Sheet

Type: pdf

File size: 827 KB

Data sheet (11-2023)

Category: Data Sheet

Type: pdf

File size: 827 KB

Technical data sheet (12-2023)

Category: Data Sheet

Type: pdf

File size: 827 KB

Fixture Library DASLIGHT (09-2023)

Category: Software

Type: zip

File size: 454 KB

Fixture Library GrandMA2 (02-2024)

Category: Software

Type: zip

File size: 77 KB

Fixture Library GrandMA2

Category: Software

Type: zip

File size: 77 KB

GDTF File (06-2024)

Category: Software

Type: zip

File size: 403 KB

Light distribution curves

Category: Software

Type: zip

File size: 98 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Product images

Category: Image files

Type: zip

File size: -

Stories
5. Sept 2024
Interview: Lighting designer Mathieu Cabanes and Morgan Coeurdray from Novelty on the “Cité Immersive Viking” museum exhibition
14. Aug 2024

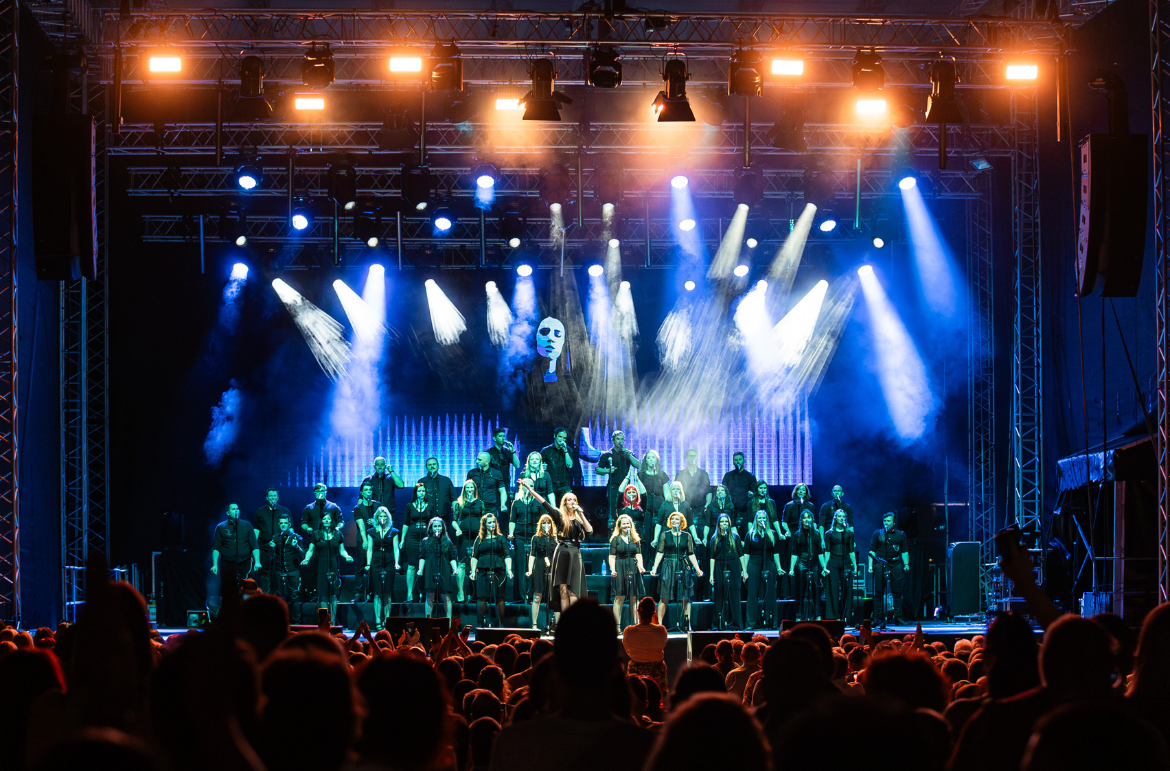

Musical holidays in Maribor – Lent Festival 2024 relies on Cameo and LD Systems
1. Aug 2024
Cameo invites guests to CAMEO DAY in Dubai – premiere of the ORON® H2 in the Middle East
30. Apr 2024

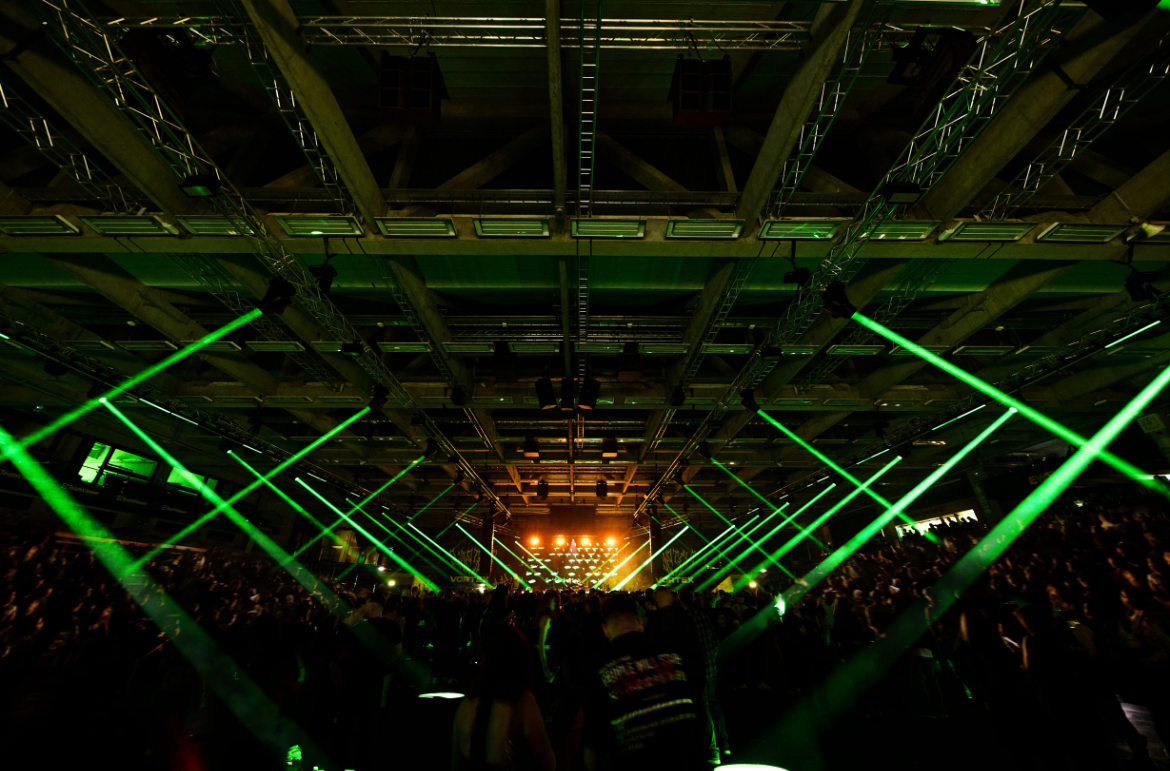

Hardcore in the Hall – Cameo at the VORTEX Festival at EWS Arena Göppingen
16. Apr 2024

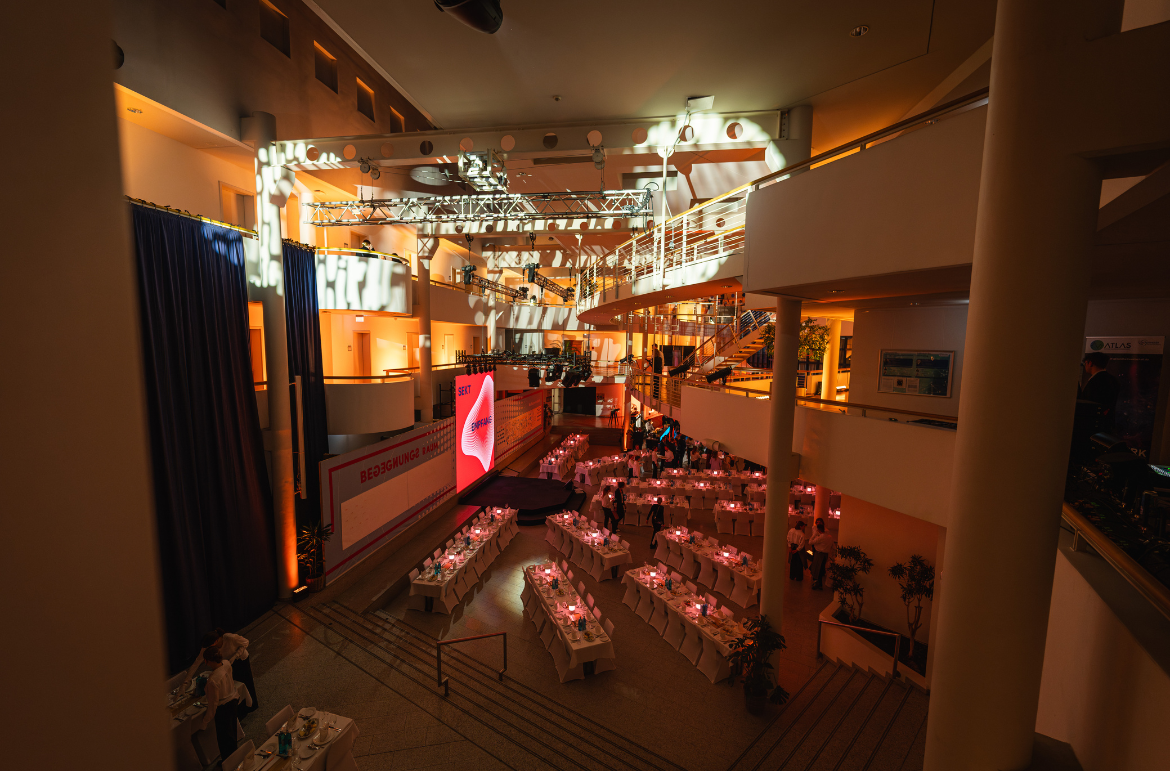

Families front and centre – Lichtschall stages congress for family businesses with Cameo
