ZENIT® W300i Outdoor LED Wash Light for fixed Installation

Item No.: CLZW300I
Series: ZENIT® Series
Versions:
21 × 15 W RGBW LEDs with 11,000 lm luminous flux for intense, uniform mixing of colours
Configuration only possible via RDM or with the ZENIT® REMOTE DISPLAY CONTROLLER (CLZIEXDISP) - available separately
18° beam angle and 35° field angle without a diffuser
Optional SnapMag® filter frames for flexible symmetric and asymmetric beam angles, installation possible without tools or securely fastened
IP67 rating for permanent outdoor use
C5-M certified anti-corrosion coating
High-resolution colour mixing and dimmer response with 16-bit technology
Control via DMX, RDM (via DMX) and automated programmes
Temperature-controlled fans for optimised, silent operation


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
21 × 15 W RGBW LEDs with 11,000 lm luminous flux for intense, uniform mixing of colours
Configuration only possible via RDM or with the ZENIT® REMOTE DISPLAY CONTROLLER (CLZIEXDISP) - available separately
18° beam angle and 35° field angle without a diffuser
Optional SnapMag® filter frames for flexible symmetric and asymmetric beam angles, installation possible without tools or securely fastened
IP67 rating for permanent outdoor use
C5-M certified anti-corrosion coating
High-resolution colour mixing and dimmer response with 16-bit technology
Control via DMX, RDM (via DMX) and automated programmes
Temperature-controlled fans for optimised, silent operation
Description

A wide mosaic of colours is increasingly being used to light buildings and other objects. Both lighting designers and the field of lighting technology are being put to the test by this boom in architectural lighting. Extremely reliable spotlights that operate over prolonged installation periods and in all kinds of weather are required here. The ZENIT® W300i provides lighting designers and architects with another version of the compact ZENIT® W300 Wash Light that's been specifically designed for permanent installations.

With 21 x 15 W RGBW LEDs in total, the ZENIT® W300i powerfully projects up to 11,000 lm precisely onto any structure, whether it's a bizarre building, rough facades or nature's diverse range of architectural creations. Lighting designers can use the sophisticated 16-bit technology for high-resolution colour mixing and dimming to create intense, uniform coloured or white patterns, bathing even the largest buildings in perfect light. The ZENIT® W300i is transformed into a versatile professional architectural lighting tool when it's combined with the built-in colour temperature correction (CTC) and LED colour correction features and selectable dimming curves, including the option to simulate a halogen lamp's dimming behaviour. Initial set-up can be easily carried out using RDM or the optionally available external display (item no.: CLZIEXDISP).

Compared to its bigger counterpart - the ZENIT® W600i (40 × 15 W; 21,000 lumens) - the ZENIT® W300i has smaller housing dimensions, making it is even more suitable for lighting objects in almost any location and from any angle. Lighting designers and technicians have nothing to worry about here: The W300i is IP67 rated and optimally protected against temporary submersion. Even harsh maritime environments are no big challenge thanks to the C5-M certified housing coating.

Maximum flexibility is ensured with the ZENIT® W300i thanks to Cameo's innovative SnapMag® technology. It makes it possible to attach the optional filter frames and their integrated precision diffusion lenses with magnets in a matter of seconds so that you can change the beam angle without any tools or having to take the spotlight apart. In addition, the SnapMag® filter frames on the ZENIT® W300i can also be screwed tight to the housing to prevent accidental removal.

More than just live events get to benefit from the quality of the ZENIT® series with the ZENIT® W300i. Architects, planners, lighting designers and rental service providers increasingly involved in architectural lighting projects can now also profit from the compact outdoor wash light's impressive light output, colour quality and reliability.

Specifications
DMX512
Environment-friendly
LED technology
Master & slave
RGB additive colour system plus white LEDs
Standalone mode
Strobe
RDM
IP67

DMX512

Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Environment-friendly

The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology

LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave

Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

RGB additive colour system plus white LEDs

Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Standalone mode

In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Strobe

Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

RDM

This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

Various dispersion angles possible

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

The calibration chip ensures that the mixed colours of the lamp are reproduced identically when using several fixtures, thereby preventing any deviations in colour between the lamps.

IP67

The IP code of the protection class indicates how well the sensitive parts of a device are protected against the ingress of foreign bodies and water. This unit is fully protected against the ingress of dust and temporary immersion.

General
Product type
LED Outdoor Wash Light
Type
ZENIT
Colour spectrum
RGBW
Number of LEDs
21
LED type
15 W
Average LED lifetime
> 20000 hours
Refresh rate
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable Hz
Dispersion
Beam Angle: 18 - Field Angle: 35 °
Lens
PE and tempered glass
DMX input
Block connector / RJ45
DMX output
Block connector / RJ45
DMX mode
10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
DMX Functions
Auto programs, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, Strobe
Power supply
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
250 W
power factor
0.95 / 230 V, 0.99 / 120 V
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP67
Cooling
Combination of Heat Pipe and Temperature Controlled Fan
Luminous flux
11000 lm
Efficiency
37.2 lm/W
Operating Temperature
-15 - 45 °C
Accessories (included)
DMX Cable
Dimensions without mounting bracket
Width
377 mm
Length
256 mm
Height
140 mm
Weight
8 kg
Downloads & links
Name
Category
Type
File size
User's manual Manual pdf 6 MB
Photometric measurements Data Sheet pdf 583 KB
Data sheet (02-2023) Data Sheet pdf 458 KB
DMX Control Table Data Sheet pdf 67 KB
Technical drawing Data Sheet dxf 9 MB
Technical drawing Data Sheet pdf 278 KB
Light distribution curves Software zip 47 KB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Product images Image files zip -
User's manual

Category: Manual

Type: pdf

File size: 6 MB

Photometric measurements

Category: Data Sheet

Type: pdf

File size: 583 KB

Data sheet (02-2023)

Category: Data Sheet

Type: pdf

File size: 458 KB

DMX Control Table

Category: Data Sheet

Type: pdf

File size: 67 KB

Technical drawing

Category: Data Sheet

Type: dxf

File size: 9 MB

Technical drawing

Category: Data Sheet

Type: pdf

File size: 278 KB

Light distribution curves

Category: Software

Type: zip

File size: 47 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Product images

Category: Image files

Type: zip

File size: -

Stories
31. Jan 2023

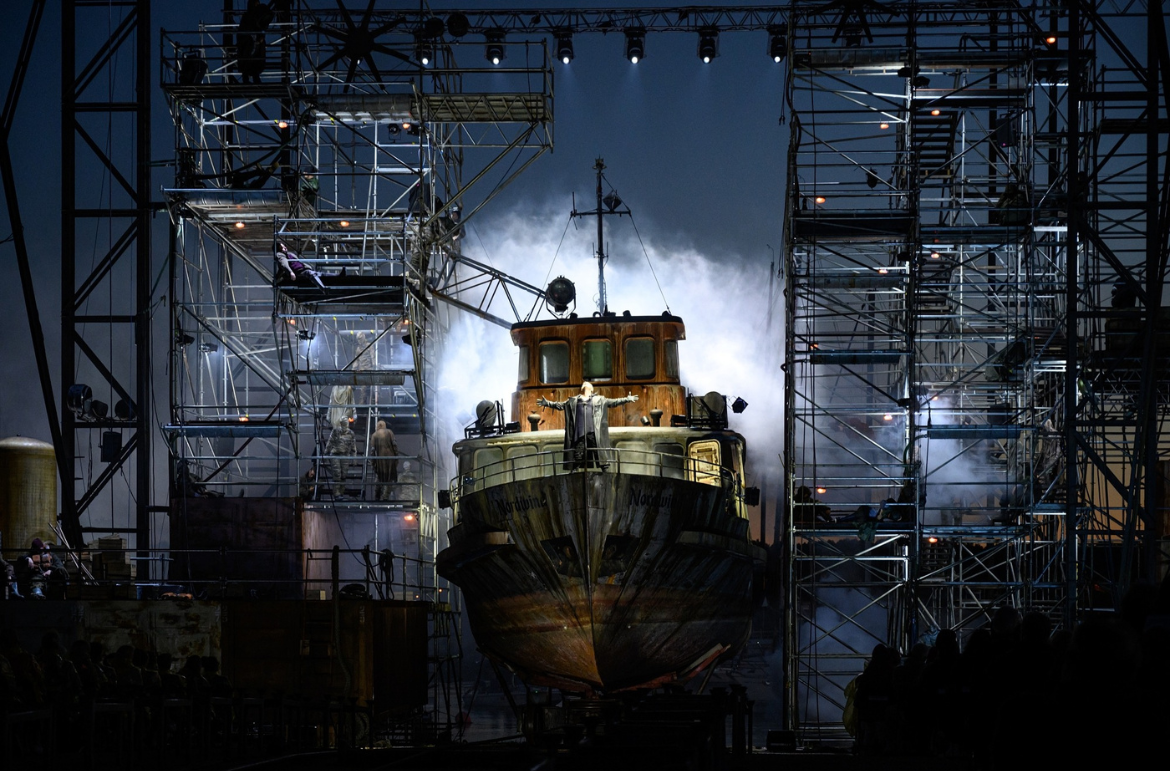

Cameo impressively stages the open-air opera “The Flying Dutchman”
