ZENIT® W600 TW Outdoor LED Wash Light Tunable White Version

Item No.: CLZW600TW
Series: ZENIT® Series
Versions:
40 x 12 W CW/WW LEDs with 31,000 lm luminous flux for intensive "Tunable White" mix
18° beam angle and 35° field angle without diffusion lens
SnapMag® filter frames with 25°, 45°, 100°, 60° x 10°, 90° x 10° beam angles available separately
Control via DMX, RDM (via DMX) and automated programs
IP65 rated for outdoor use
Integrated 2.4 GHz W-DMX™ transceiver
Wireless master-and-slave operation
Temperature-controlled fans for optimised, low-noise operation
Colour temperature from 2,600 K to 6,500 K


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
40 x 12 W CW/WW LEDs with 31,000 lm luminous flux for intensive "Tunable White" mix
18° beam angle and 35° field angle without diffusion lens
SnapMag® filter frames with 25°, 45°, 100°, 60° x 10°, 90° x 10° beam angles available separately
Control via DMX, RDM (via DMX) and automated programs
IP65 rated for outdoor use
Integrated 2.4 GHz W-DMX™ transceiver
Wireless master-and-slave operation
Temperature-controlled fans for optimised, low-noise operation
Colour temperature from 2,600 K to 6,500 K
Description

Puts every space in the right light - the Tunable White version of the ZENIT® W600 family projects its up to 31,000 lm light from a total of 40 x 12 watt cool and warm white LEDs powerfully and precisely onto every area, whether in the exhibition hall or at an exhibition. Thanks to 16-bit technology for high-resolution colour mixing and dimming, lighting designers can create powerful white surfaces that range from 2,600 K to 6,500 K in colour temperature. The selectable dimming curves including the optional simulation of the dimming behaviour of a halogen lamp make the ZENIT® W600 TW a versatile tool for atmospheric architectural and stand lighting.

For maximum flexibility, numerous accessories are available for the ZENIT® W600 TW. A variety of symmetrical and asymmetrical SnapMag® filter frames can be selected to achieve the desired beam angle. Filter frames with 25°, 45°, 100° or elliptical 60° x 10° and 90° x 10° beam angles are available and, thanks to the patented SnapMag® technology, mounting is done completely without tools.

The ZENIT® W600 has already proven its quality on live stages, outdoor events and in the TV sector - with the ZENIT® W600 TW, architects, planners, lighting designers and rental service providers who increasingly work in the field of architectural and trade fair lighting now also benefit from the enormous luminous efficacy, quality and reliability of the Tunable White Washlight.

Specifications
Cold white
DMX512
Environment-friendly
Protection class IP65
LED technology
Master & slave
Standalone mode
Strobe
Warm white
RDM

Cold white

According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

DMX512

Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Environment-friendly

The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Protection class IP65

The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

LED technology

LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave

Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Standalone mode

In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Strobe

Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Warm white

According to the colour temperature scale in Kelvin (K), warm white is a soft, lightly yellowish light with a natural character that is pleasant to the human eye.

RDM

This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

The device features wireless master/slave operation.

This product is ETL certified.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

General
Product type
LED Outdoor Wash Light
Colour spectrum
Warm White/Cold White
Number of LEDs
40
LED type
12 W, 2in1 SMD with collimator lenses
CRI
93 @ 4000 K
Average LED lifetime
> 20000 hours
Refresh rate
800 - 25000 Hz, 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable Hz
TILT movement
158° (manuell)
Dispersion
Beam Angle: 18 - Field Angle: 35 °
Lens
PE and tempered glass
DMX input
XLR 5-pin male IP65
DMX output
XLR 5-pin female IP65
DMX mode
1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 7-channel
DMX Functions
CTC (Colour Temperature Correction), Dimmer, Dimmer Fine, Strobe, System settings, Warm White/Cold White
Standalone modes
CTC (Colour Temperature Correction), Dimmer Mode, Strobe, Timer, Warm White/Cold White
System settings
Dimmer Curve, Dimmer Response, Display Illumination, DMX Fail, Factory reset, fan, LED PWM Frequency, Rotate display by 180°
Control
DMX512, RDM, W-DMX
Electrical protection class
1
Controls
Down, Enter, Mode, Up
Indicators
OLED Display
Power supply
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
480 W
power factor
0.95 / 120 V, 0.95 / 230 V
Power supply connector
TrueCon In + Out (Out max. 6A)
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP65
Cooling
fan
Luminous flux
31000 lm
Color temperature
2600 - 6500 K
Ambient temperature (operating)
-15 - 40 °C
Accessories (included)
2 x omega mounting, Power cord
Total dimensions
Width
463 mm
Depth
161 mm
Height
291 mm
Weight
13 kg
Downloads & links
Name
Category
Type
File size
User's manual Manual pdf 7 MB
Technical Drawing Data Sheet dxf 9 MB
Technical Drawing Data Sheet pdf 203 KB
Light distribution curves Software zip 200 KB
Fixture Library DASLIGHT Software zip 31 KB
Fixture Library GrandMA2 Software zip 28 KB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Product images Image files zip -
User's manual

Category: Manual

Type: pdf

File size: 7 MB

Technical Drawing

Category: Data Sheet

Type: dxf

File size: 9 MB

Technical Drawing

Category: Data Sheet

Type: pdf

File size: 203 KB

Light distribution curves

Category: Software

Type: zip

File size: 200 KB

Fixture Library DASLIGHT

Category: Software

Type: zip

File size: 31 KB

Fixture Library GrandMA2

Category: Software

Type: zip

File size: 28 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Product images

Category: Image files

Type: zip

File size: -

Stories
1. Mar 2023

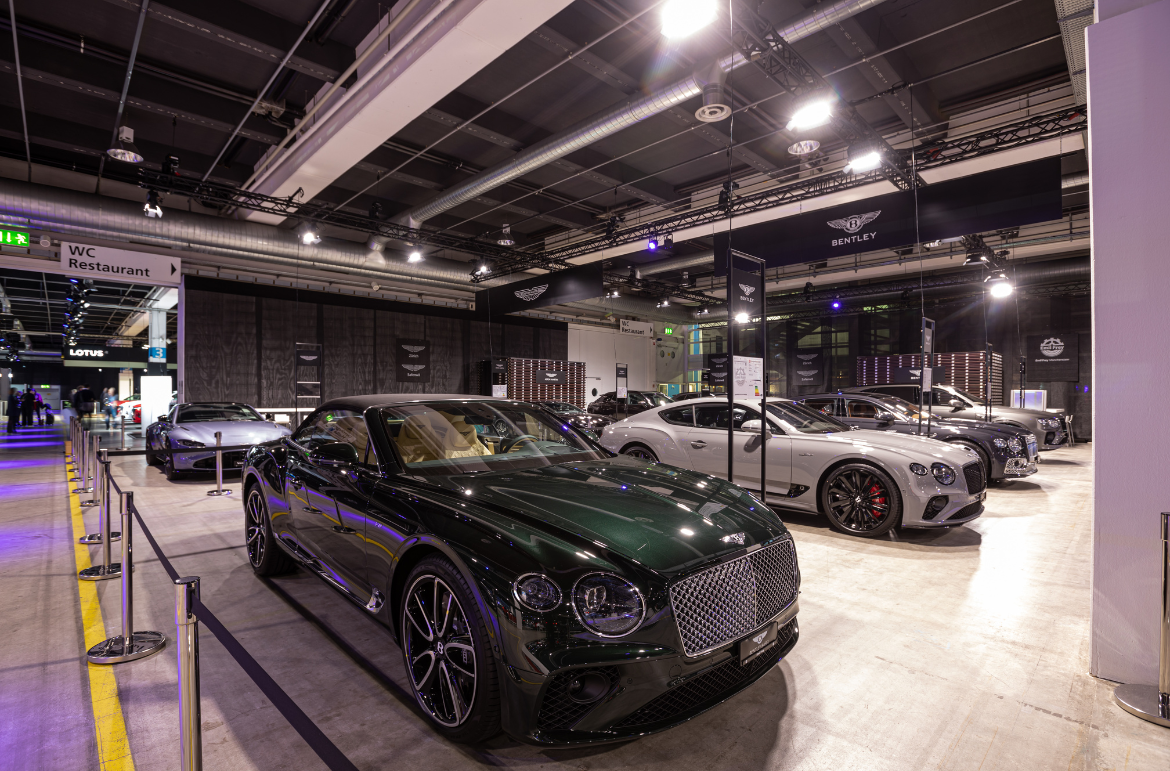

smARTec invests in Cameo ZENIT® W600 TW – Premiere at Auto Zurich
